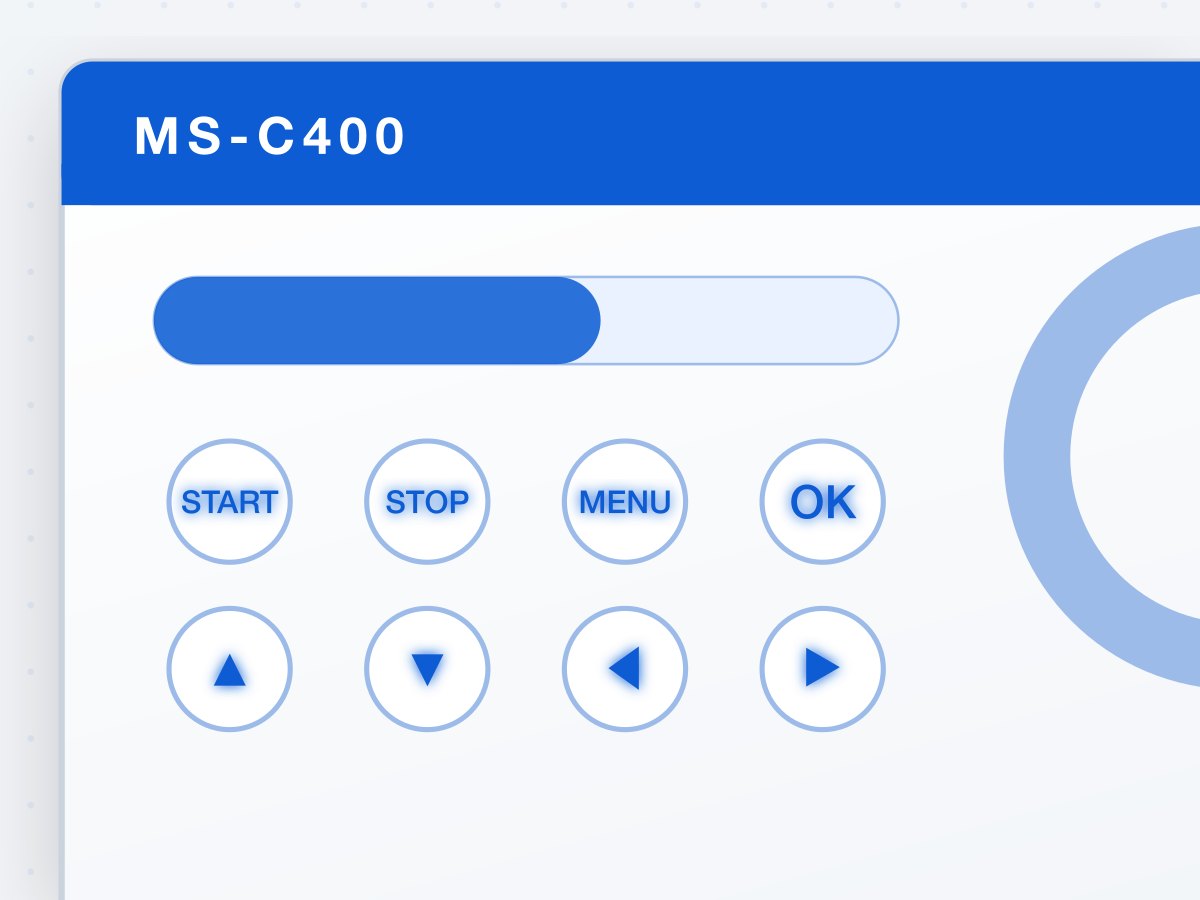

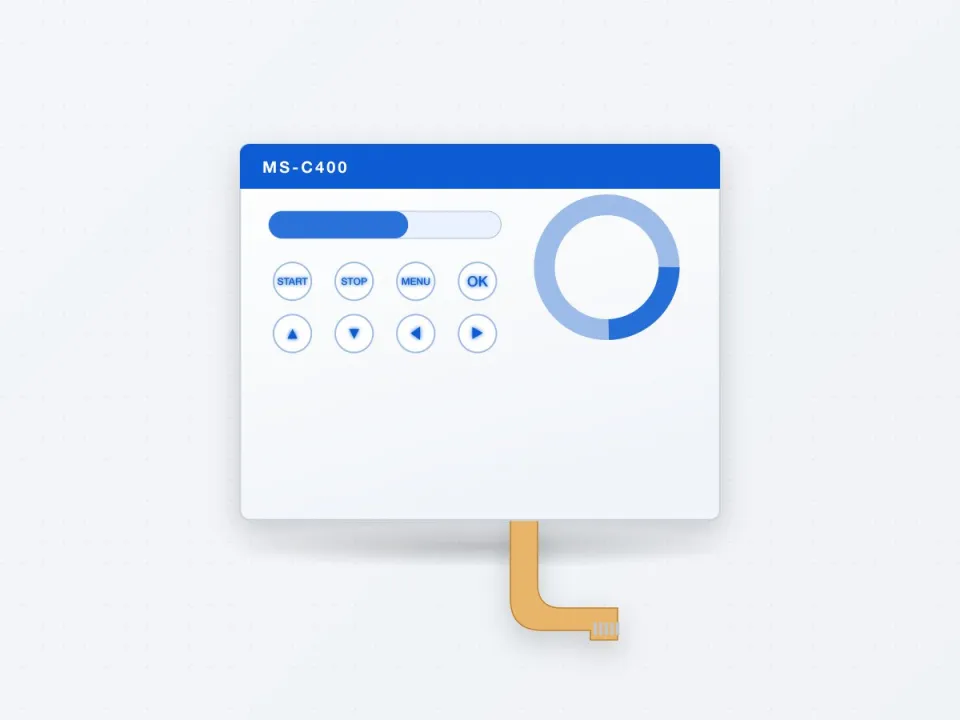

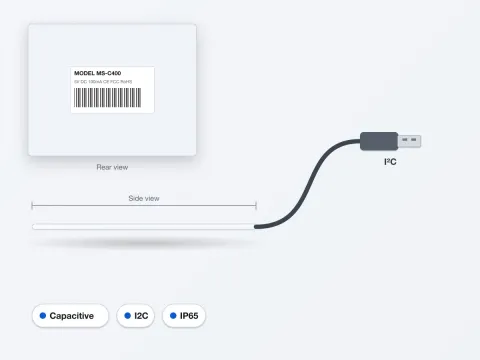

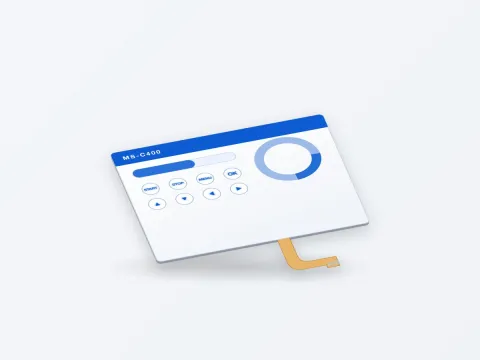

MS-C400 Capacitive Touch Membrane PanelMS-C400 电容触摸薄膜面板
1 / 4
MS-C400 Capacitive Touch Membrane PanelMS-C400 电容触摸薄膜面板
Model型号: MS-C400
Flat capacitive touch panel combining a printed overlay with an on-board touch controller - slider, wheel and 8 touch keys.印刷面贴与板载触控芯片结合的平面电容触摸面板，含滑条、滚轮与 8 个触摸键。
Key Features核心特性
- Capacitive keys, slider and wheel
- Works through 3 mm glass or plastic
- I²C / UART output
- Water-resistant algorithm
- 电容按键、滑条与滚轮
- 可透过 3 mm 玻璃或塑料感应
- I²C / UART 输出
- 防水算法
- Factory direct源头工厂
- OEM / ODM available支持 OEM / ODM
- Reply within 24h24 小时内回复
MS-C400 gives products a modern, seamless look while staying easy to clean. Sensitivity is tuned for the overlay thickness you choose.
Modern Touch Interface
- Auto-calibration against temperature drift
- Proximity wake-up
- Firmware customization available
Used on smart appliances, lighting controls and medical equipment.
MS-C400 让产品外观现代、无缝且易于清洁，灵敏度根据您选择的面板厚度调校。
现代触控界面
- 自动校准温度漂移
- 接近唤醒
- 可定制固件
应用于智能家电、灯光控制与医疗设备。
| Keys按键数 | 8 touch keys + slider + wheel8 个触摸键 + 滑条 + 滚轮 |
|---|---|
| Interface接口 | I²C / UARTI²C / UART |
| Protection防护等级 | IP65IP65 |
| Material材质 | PET or PC overlay, FPC sensorPET 或 PC 面贴，FPC 感应层 |
| Key Travel按键行程 | 0 mm (touch)0 mm（触控） |
| Actuation Force触发力 | Touch activation触摸激活 |
| Operating Voltage工作电压 | 3.3 V / 5 V DC3.3 V / 5 V DC |
| Lifetime按键寿命 | Unlimited (no mechanical wear)无限次（无机械磨损） |
| Operating Temperature工作温度 | -20°C to +70°C-20°C to +70°C |
| Dimensions外形尺寸 | 160 × 90 × 1.5 mm160 × 90 × 1.5 mm |
All parameters can be customised for your project. Contact us for full drawings.以上参数均可按项目需求定制，如需完整图纸请联系我们。
- MS-C400 Capacitive Touch Membrane Panel Datasheet规格书 PDF · 3.2 KB Download下载
- Industrial Keyboard Product Catalog 20262026 工业键盘产品目录 PDF · 10 KB Download下载
- Membrane Switch Design Guide薄膜开关设计指南 PDF · 2 KB Download下载
- IP Rating Selection Guide for Keyboards键盘防护等级选型指南 PDF · 2.2 KB Download下载
Built for Laboratory & Cleanroom应用于实验室与洁净车间
Low-particle, smooth-surface keyboards for cleanrooms, pharmaceutical production, semiconductor fabs and biosafety laboratories.用于洁净室、制药生产、半导体工厂和生物安全实验室的低发尘、表面光滑键盘。
Explore the Solution了解行业方案
Request a Quote获取报价
Tell us your quantity, interface and customisation needs. Our engineers will reply within 24 hours.告诉我们您的数量、接口和定制需求，工程师将在 24 小时内回复。
- Free sample evaluation免费样品评估
- Custom logo, layout and interface支持 Logo / 布局 / 接口定制
- CE / FCC / RoHS certifiedCE / FCC / RoHS 认证
