MS-P200 Membrane Keypad with LCD WindowMS-P200 带 LCD 视窗的薄膜按键
1 / 4
MS-P200 Membrane Keypad with LCD WindowMS-P200 带 LCD 视窗的薄膜按键

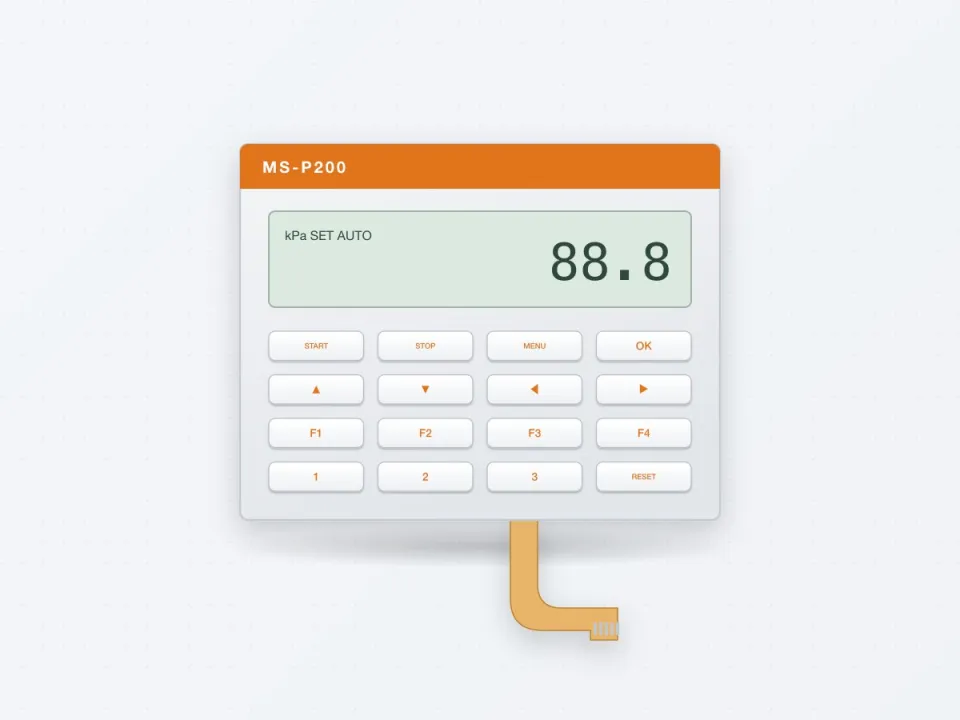

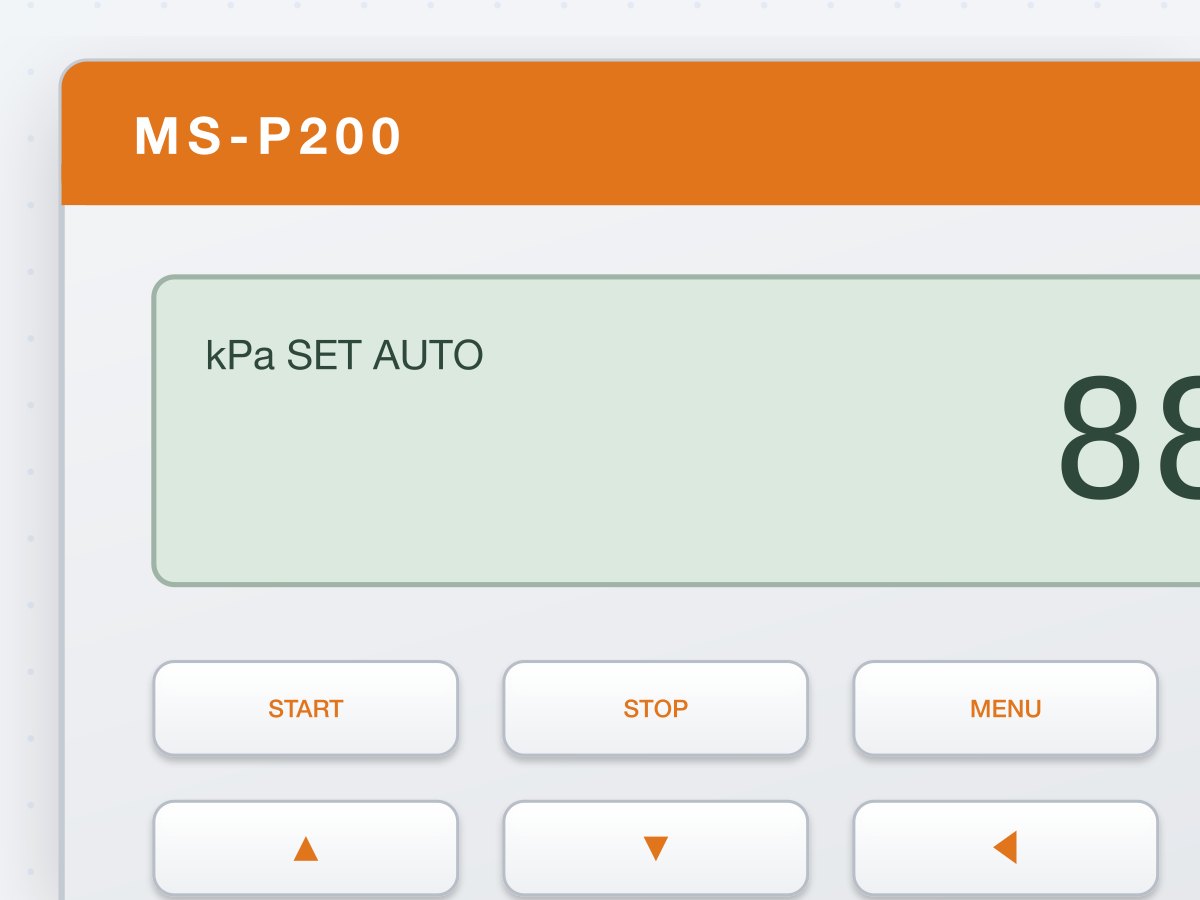

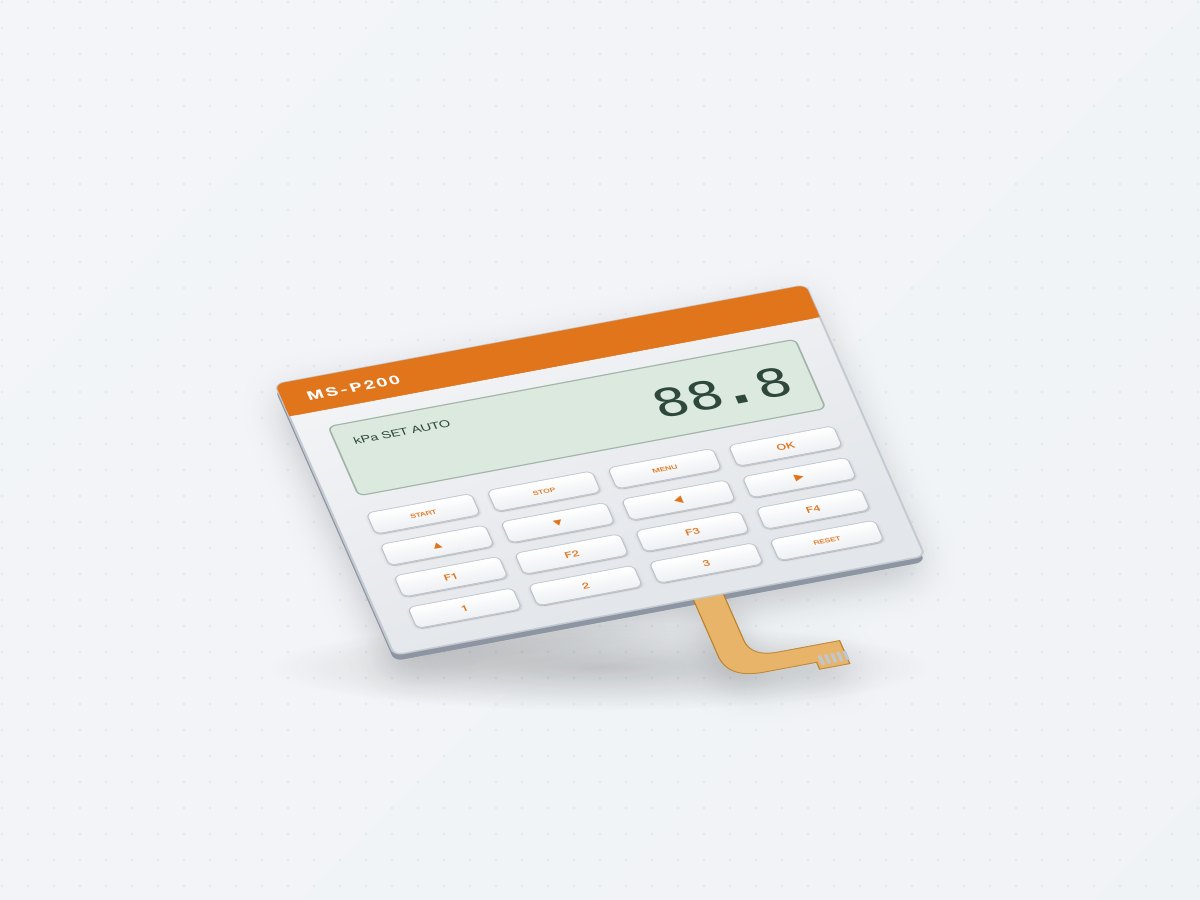

Model型号: MS-P200
16-key membrane keypad with a clear hard-coated display window, navigation cluster and rigid aluminum backer for instrument front panels.16 键薄膜按键，带透明加硬显示视窗与导航按键组，铝背板，适用于仪器前面板。
Key Features核心特性
- Hard-coated anti-scratch display window
- Navigation cluster with arrow keys
- 1.5 mm aluminum backer
- Selective matte/gloss finish
- 加硬防刮显示视窗
- 带方向键的导航按键组
- 1.5 mm 铝背板
- 局部亮面/哑面工艺
- Factory direct源头工厂
- OEM / ODM available支持 OEM / ODM
- Reply within 24h24 小时内回复
MS-P200 integrates the display window and keypad into one sealed overlay, simplifying your front panel assembly and eliminating separate lens parts.
Integrated Design
- Window transmittance > 90%
- Dead-front printing hides LEDs until lit
- Supplied with peel-and-stick adhesive
Ideal for analyzers, weighing scales, power supplies and test equipment.
MS-P200 将显示视窗与按键整合在一张密封面贴中，简化前面板装配，省去独立视窗镜片。
一体化设计
- 视窗透光率 > 90%
- 隐藏式印刷，LED 点亮前不可见
- 自带背胶，撕贴即用
适用于分析仪、电子秤、电源和测试设备。
| Keys按键数 | 16 keys16 keys |
|---|---|
| Interface接口 | FPC tail with 1.25 mm Molex connectorFPC 尾线，1.25 mm Molex 接头 |
| Protection防护等级 | IP65IP65 |
| Material材质 | Polyester overlay, aluminum backerPET 面贴，铝背板 |
| Key Travel按键行程 | 0.4 mm0.4 mm |
| Actuation Force触发力 | 300 gf300 gf |
| Contact Rating触点额定值 | ≤ 100 Ω, 24 V DC 50 mA≤ 100 Ω, 24 V DC 50 mA |
| Lifetime按键寿命 | > 1 million operations> 100 万次 |
| Operating Temperature工作温度 | -20°C to +70°C-20°C to +70°C |
| Dimensions外形尺寸 | 180 × 120 × 2.8 mm180 × 120 × 2.8 mm |
All parameters can be customised for your project. Contact us for full drawings.以上参数均可按项目需求定制，如需完整图纸请联系我们。
- MS-P200 Membrane Keypad with LCD Window Datasheet规格书 PDF · 3.2 KB Download下载
- Industrial Keyboard Product Catalog 20262026 工业键盘产品目录 PDF · 10 KB Download下载
- Membrane Switch Design Guide薄膜开关设计指南 PDF · 2 KB Download下载
- IP Rating Selection Guide for Keyboards键盘防护等级选型指南 PDF · 2.2 KB Download下载
Engineered for Demanding Environments为严苛环境而生
Sealed, rugged and reliable for years of daily operation.防水、防尘、防暴力，长期稳定运行。
Request a Quote获取报价
Tell us your quantity, interface and customisation needs. Our engineers will reply within 24 hours.告诉我们您的数量、接口和定制需求，工程师将在 24 小时内回复。
- Free sample evaluation免费样品评估
- Custom logo, layout and interface支持 Logo / 布局 / 接口定制
- CE / FCC / RoHS certifiedCE / FCC / RoHS 认证
