MS-P100 Tactile Membrane Switch Panel with LED IndicatorsMS-P100 带 LED 指示灯的触感薄膜开关面板
1 / 4
MS-P100 Tactile Membrane Switch Panel with LED IndicatorsMS-P100 带 LED 指示灯的触感薄膜开关面板
Model型号: MS-P100

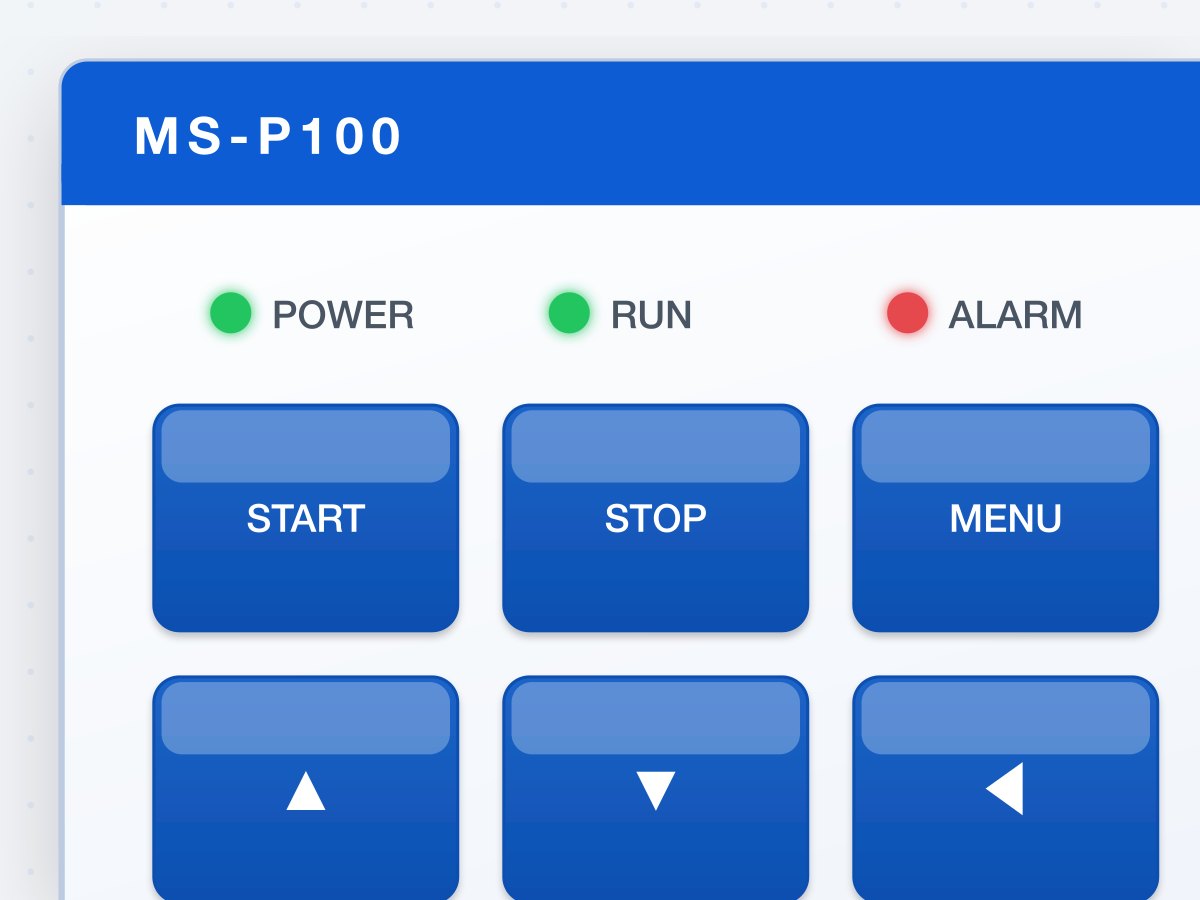

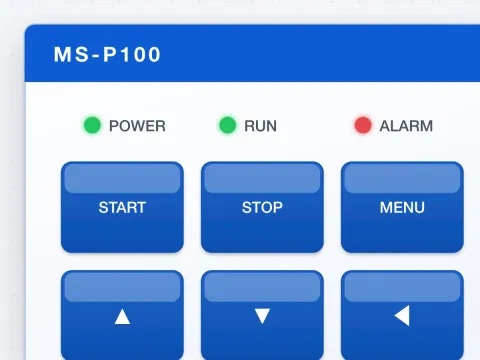

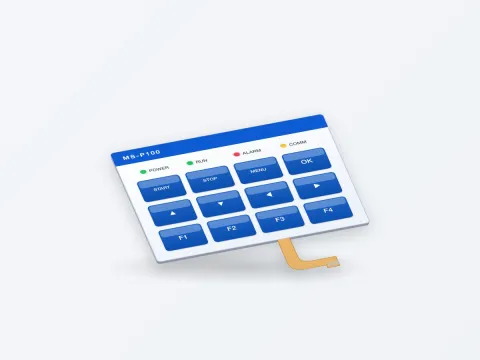

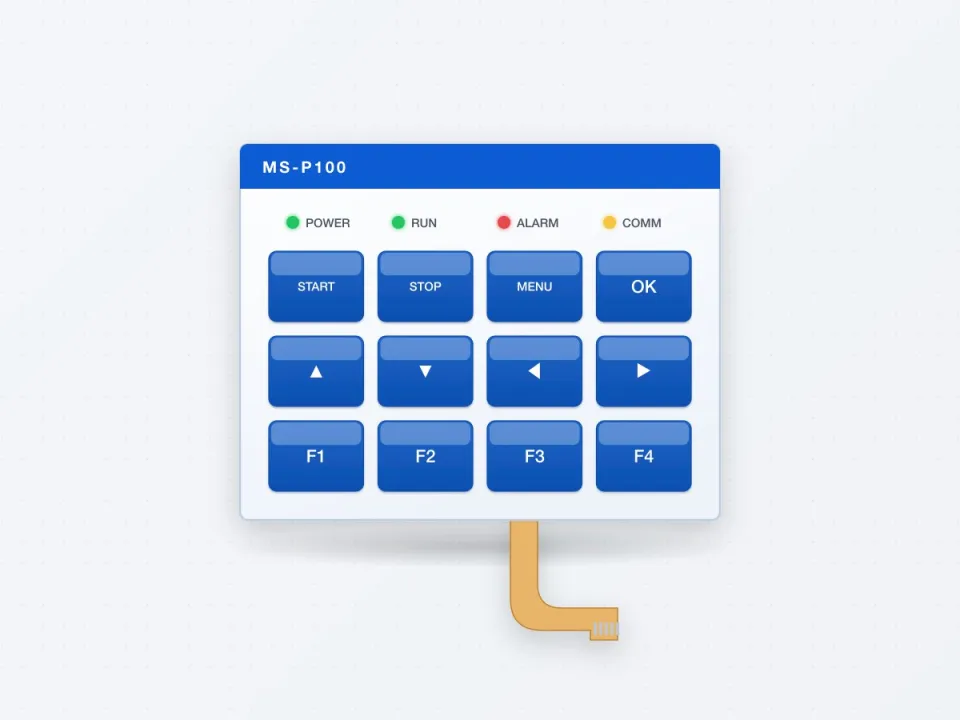

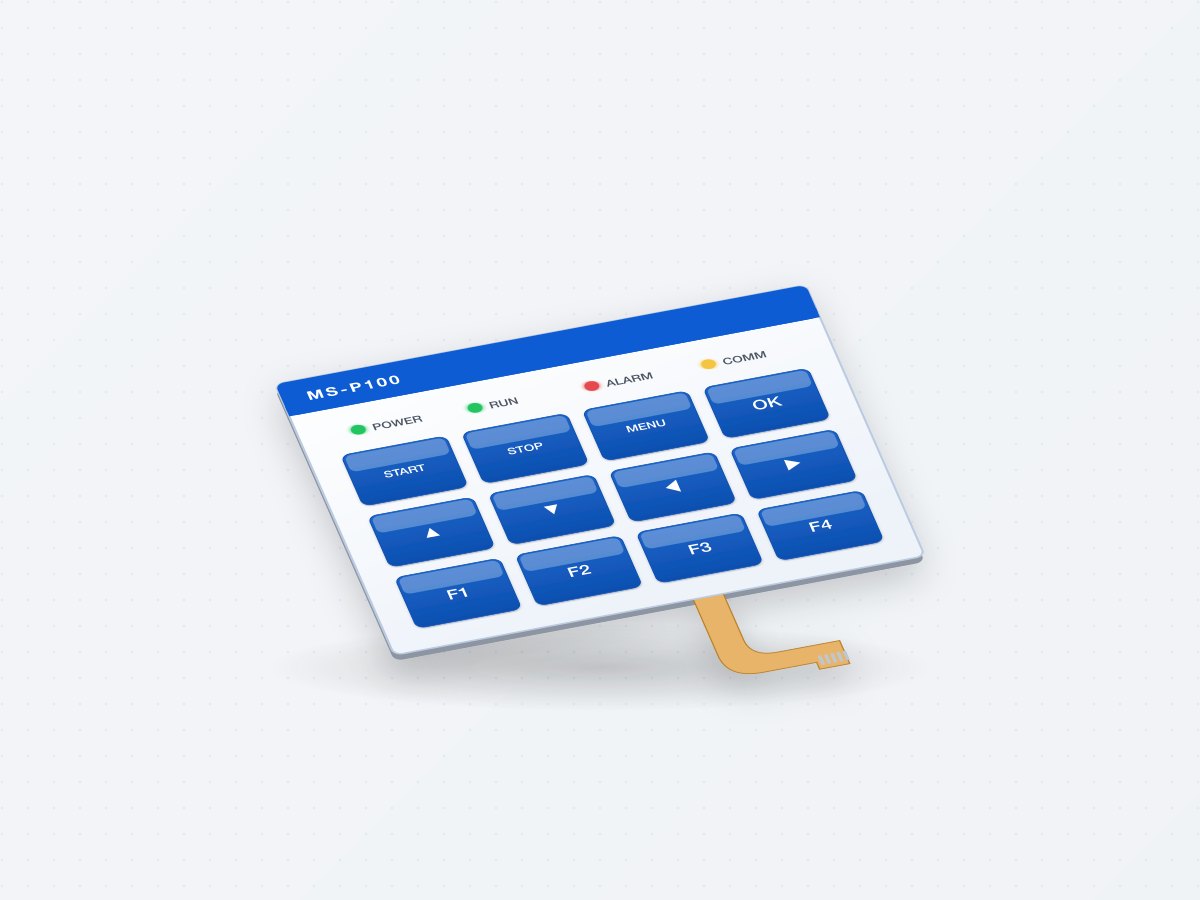

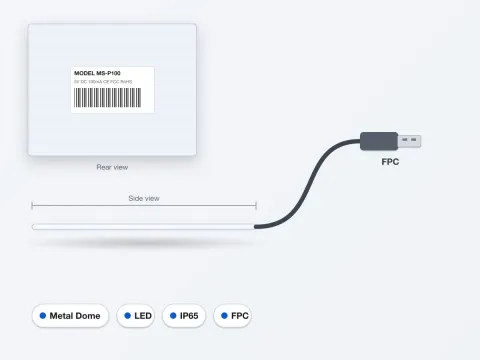

12-key metal-dome membrane switch with embossed keys, 4 status LEDs and a polyester graphic overlay; ZIF flex tail connector.12 键金属弹片薄膜开关，按键凸包设计，4 颗状态 LED，PET 面贴，ZIF 软排线接口。
Key Features核心特性
- Stainless steel metal domes for crisp tactile feedback
- Embossed keys for blind operation
- SMD LED indicators
- Autotex anti-UV polyester overlay
- 不锈钢金属弹片，手感清脆
- 按键凸包，便于盲操作
- 贴片 LED 指示灯
- Autotex 抗紫外线 PET 面贴
- Factory direct源头工厂
- OEM / ODM available支持 OEM / ODM
- Reply within 24h24 小时内回复
MS-P100 is a ready-to-customize membrane switch reference design. Layout, colors, window positions and tail exit can all be adapted to your enclosure.
Design Options
- Pantone color matching and selective texture
- Optional ESD shielding layer
- Rigid aluminum or FR4 backer available
Used on medical monitors, test instruments, household appliances and industrial controllers.
MS-P100 是可快速定制的薄膜开关参考设计，布局、颜色、视窗位置和出线方向均可根据您的外壳调整。
设计选项
- 潘通色号匹配及局部磨砂
- 可选防静电屏蔽层
- 可配铝板或 FR4 支撑板
应用于医疗监护仪、测试仪器、家用电器与工业控制器。
| Keys按键数 | 12 keys + 4 LEDs12 键 + 4 颗 LED |
|---|---|
| Interface接口 | FPC tail, 2.54 mm pitch, ZIF or female connectorFPC 尾线，2.54 mm 间距，ZIF 或母座 |
| Protection防护等级 | IP65 (front)IP65（正面） |
| Material材质 | PET overlay + PET circuit + 3M 467 adhesivePET 面贴 + PET 线路 + 3M 467 背胶 |
| Key Travel按键行程 | 0.3 mm0.3 mm |
| Actuation Force触发力 | 350 gf (metal dome)350 gf（金属弹片） |
| Contact Rating触点额定值 | ≤ 100 Ω, 12 V DC 100 mA≤ 100 Ω, 12 V DC 100 mA |
| Lifetime按键寿命 | > 1 million operations> 100 万次 |
| Operating Temperature工作温度 | -20°C to +70°C-20°C to +70°C |
| Dimensions外形尺寸 | 150 × 100 × 1.2 mm150 × 100 × 1.2 mm |
All parameters can be customised for your project. Contact us for full drawings.以上参数均可按项目需求定制，如需完整图纸请联系我们。
